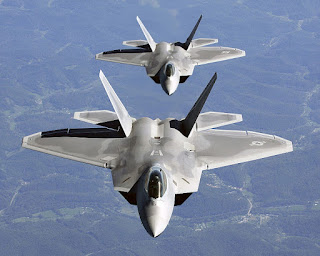

F-22 Raptor

Name: F/A-22 Raptor

Constructor:
Lockheed / Boeing
Armament:
1 cannon 20 mm
Internal bays
External hardpoints
Length: 18m92
Max Speed: Mach 1.9
Ceiling: 18000 m
Height: 5m08
Weight Max: 36228 kg
Range Ferry: 3204 km
Span: 13m56
Crew: 1
Engines: 2

The Lockheed Martin/Boeing F-22 Raptor is a single-seat, twin-engine fifth-generation supermaneuverable fighter aircraft that uses stealth technology. It was designed primarily as an air superiority fighter, but has additional capabilities that include ground attack, electronic warfare, and signals intelligence roles. Lockheed Martin Aeronautics is the prime contractor and is responsible for the majority of the airframe, weapon systems and final assembly of the F-22. Program partner Boeing Defense, Space & Security provides the wings, aft fuselage, avionics integration, and training systems.
